Rotor Lamination Fabrication & Assembly Services
The rotor is a vital component of electric motors and generators. Sotek is one of the world’s most reliable manufacturers for custom rotor laminations.
Our Services
Our fabrication and assembly services of laser-cut laminations come in any:
- Quantity
- Stacking
- Welding
- Bonding
- Assembly
- Material and component sourcing
- Engineering
- Tool design and manufacture
- Customization
- Balancing
- CNC machining
- EDM
-
Supply chain management
Castings -
Processing
Finishing - Coatings
- Integration
- Winding
- Prototype runs, short runs and high volume assembly
The Importance of Lamination

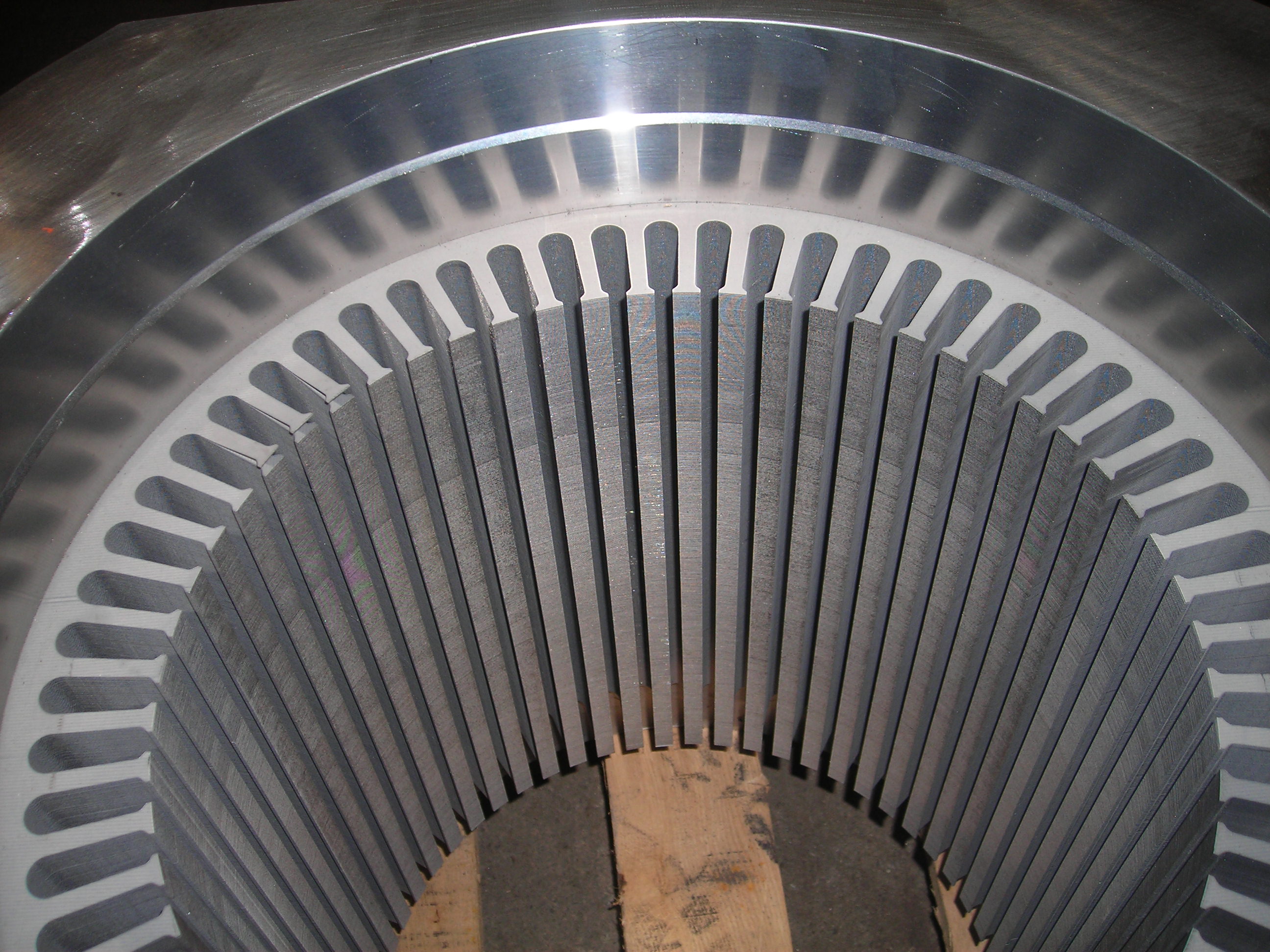

The rotor consists of a steel lamination and resembles a cylindrical core with evenly-spaced slots for its three-phase windings. The lamination process consistently reduces the loss of iron. Since the lamination is made of steel, the assembly will also reduce Eddy current loss. Because of this, the rotor core will not be subjected to iron losses since the rotor current frequency is low.
As the magnetic field of the energized rotor passes through the stator core, a perpendicular flow is created. The current that passes through the stator is the Eddy current, which flows in planes perpendicular to the magnetic field. If the core was not laminated and only made of solid steel, the Eddy currents would generate so much heat that the core would likely melt.
About Sotek
At Sotek, we work hard for you with our top-of-the-line machines and craftsmanship. We solve your sourcing and production difficulties and streamline your process, saving you lead time, processing time, manufacturing steps, purchasing steps, and additional vendors while adding value along the way. We meet every challenge with our own creative solutions, using our vast network and proven in-house resources.
Contact Us Today to Get Started with Rotor Lamination or Another of Our Services
